After many years of me bugging the industry to make an optimized LE Designated Markman/SPR ammunition in 5.56mm, TKG (Federal/Speer) came through!

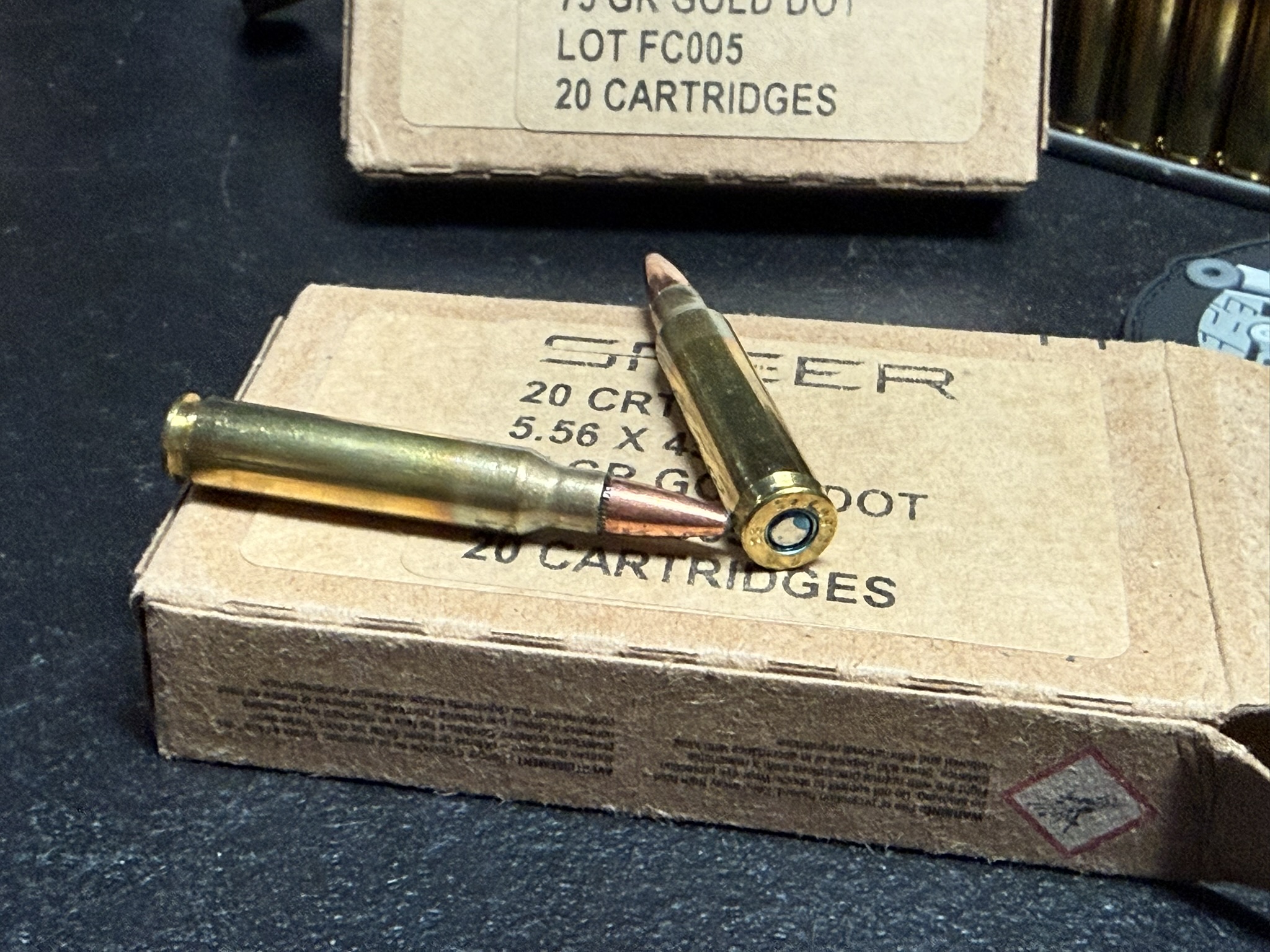

5.56mm 75gr Gold Dot:
- Full pressure
- Match accurate
- Temp stable powder
- Low SDs
- Heavy for caliber, bonded projectile
- Crimped & waterproof primers & case mouth

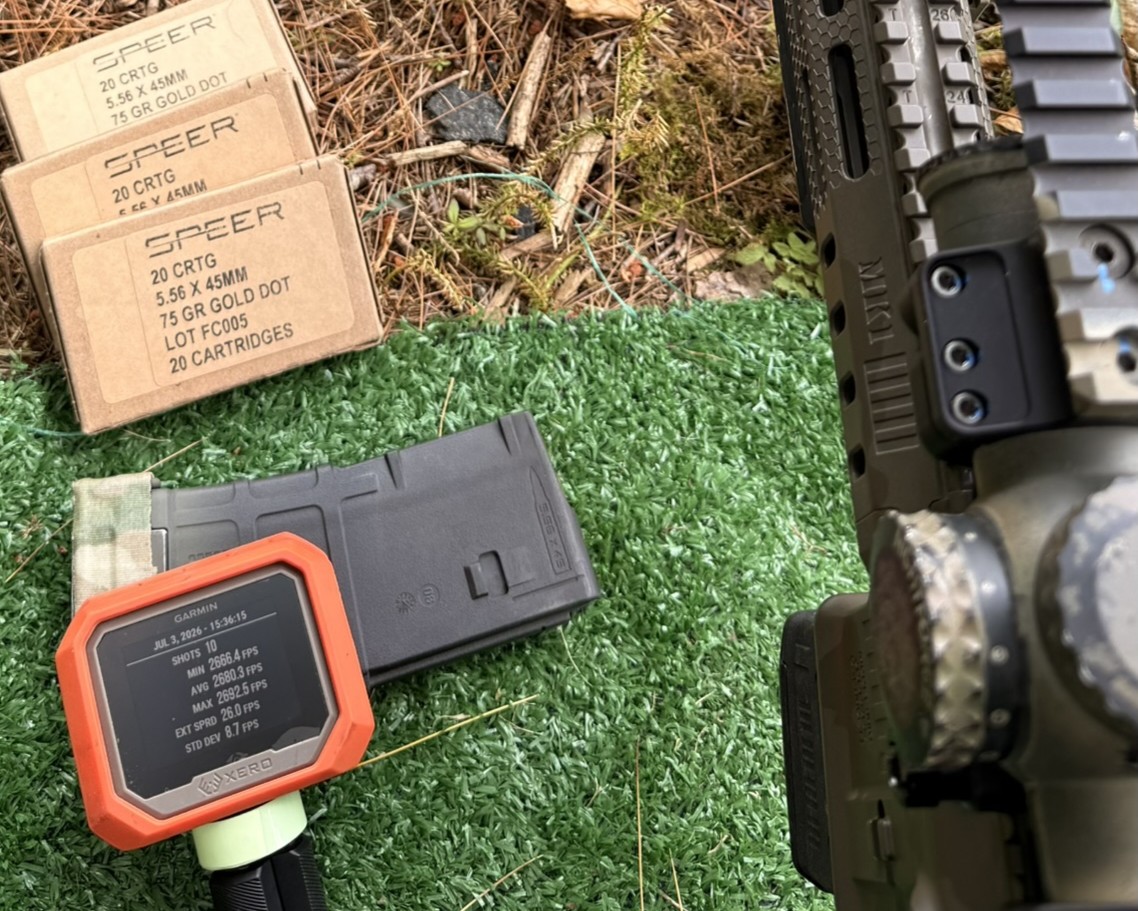

This is the test batch and it performed very well from my SOLGW Mk1 (14.5″) with Nightforce ATACR 1-8:
- Sub-MOA groups
- Avg 2680 fps
- Single-digit SDs
It should be available Fall 2026, and I won’t be surprised if it kills off other LE SKUs, as it checks a lot of boxes.
The original 75 grain Gold Dot cartridge was a SBR load with a patrol rifle accuracy standard and was downloaded to .223 pressure. This was due to agencies buying non-duty grade rifles, adding suppressors, then complaining that the ammo was too hot. It also had a nickel-plated case which I don’t feel helps SDs or consistent neck tension. Side note: 62gr Gold Dot and the Federal 62gr T3 load were designed for 16″ barrel carbines like Colt 6920s, and I wouldn’t use 55gr Gold Dot unless I was stuck with 1/12″ twist, surplus M16A1s. (How 60 year old barrels are not completely shot out by now baffles me.)
Remember, many LE gunfights happen around vehicles and OTM/SMK projectiles are absolutely not acceptable for LE use. Even on the .mil side, we knew 20 years ago that MK262 was lacking. However, getting a hit with service rifle competition ammo (on a 140lb guy in pajamas 600 yards away) was better than having no chance of a hit with the only other option, M855 ball. ATK developed a bullet specifically for improved terminal ballistics in SPRs in the mid-2000s, the 77 grain SOST, however, the US Army killed the program to push M855A1.
I have documented numerous recent failures in LE shootings caused by improper rifle ammunition selection for the foreseeable conditions. (Please contact me if your agency had one.) There is a penetration and barrier standard for duty ammo that has existed for decades, but for some reason, admins/chiefs and uninformed firearms cadre choose to ignore it. LE is more likely to engage a dude wearing a Carhartt jacket over a hoody through a windshield or body panel, than some scenario where a 55 grain prairie dog bullet is needed due to “overpenetration”.
I know LE probably doesn’t need to shoot people 600 yards away. This is more about reducing margin of error on tighter mid-range shots in the overwatch role, while still being an effective round in a “typical” LE gunfight. (See my previous post on LE Scoped Carbine Ammunition). I am still hoping for this to be loaded in Peak Alloy cases in the future, but this was a way to get a 95% solution ASAP.
-Jay
*Special thanks to Johann Boden of The Kinetic Group’s LE ammunition team for attending and supporting the 2026 LE DM Competition and Conference, then making this possible. Thank you also to Dr Gary Roberts for taking the time to provide background information.
